TidBits 2012

Remote connection :  To get the correct behavior when you try to remotely connect to a Topspin session, you should make sure that the firewall allows incoming connections on both the remote machine as well as the client machine.  If the remote host is allowing in-coming connections, but the client does not allow the remote host to connect back, then the tell-tale sign is that you will go as far as the PAM login window and then the connection will fail.

If you have setup openvpn connection between the remote host and client machine, then you don't have to spend time to tweak the ports through which the machines have to allow the connections. You can simply let the incoming connections from the trusted IP-s in the non-routable subnet on all ports.

popt and  spectrum limits:

If you are employing a wide SW when running  popt,  make sure that you don't use the entire SW as the difference between F1P and F2P.  The automated ABSF command will fail and the optimization will stop abruptly after the first increment.   Use a limit not greater than 5 ppm to get the desired result.

Topspin 2.1 and RHEL 6.3 - how to get out of this bind

The bug had bitten me again. When I decided to upgrade my ageing computer box (about 9+ yrs. old now) that runs Topspin 2.1 PL6 with an Avance console,  I wanted to go for the RedHat Enterprise Linux 6.3.  Just for nostalgia, in the days when SGI workstations roamed the earth, XWINNMR used to be the software ruling the Brukerland and it had the special requirement that the graphics card support 8-bit colour depth, while the computer hardware and OS moved on to support 24 bit depth typically.  The graphics card that did double duty, has become so obsolete of late that the 'mga' driver,  seemed to cause problems slowing down my systems. That is why I decided to move on with the newer hardware.  That and I also want to move away from ATAPI hard drives.

Instead of making life easy by going with RHEL 5, I decided to go with 6.3.

Problem:  CCU won't boot.

Ending : happy ending :-)

I will summarize quickly what's the matter.

Background :

Digging a bit with wireshark packet sniffer,  we could clearly see that the initial conversation between 'spect', which is the CCU11 board and 'ASP_ST2', which is the Linux box does take place.  It proceeds to the point where, spect, which is the diskless client, asks for a port number in which bootparamd is listening. It tries to get the info from the ASP_ST2 server.   bootparamd, similar to nfs or rquotad belongs to the RPC family of servers.  Normally, they register themselves to a program called portmap,  which in turn informs a connecting client such as spect, to which port number the client is supposed to send its communications to talk to that particular server, in this case bootparamd.

I show here a packet, where this request for port number from  spect (IP 149.236.99.99) to ASP_ST2 (IP 149.236.99.1) is rejected.   In the upper half of the window that summarizes the traffic, note the last line "Portmap GETPORT Reply Port:0 PROGRAM_NOT_AVAILABLE".   Also note the 3rd line, Internet Protocol that shows you who is sending this message to whom i.e. 149.236.99.1 --> sends this packet to --> 149.236.99.99.



Problem and resolution :

With RHEL 6.3  (which is derived from Fedora 14 and higher), the newer program rpcbind is used in place of the conventional portmap. The following wikipedia page underlines the fact that these two programs are different avatars of the same entity.   The portmap seems to be the older version and rpcbind is the newer version.  With RHEL 6.3, for an inexplicable reason, both the portmap  and rpcbind are installed and turned on by default.

In a system where portmapper function is fine, you can enter the command rpcinfo -p and get a typical output similar to this :

 program vers proto   port  service
    100000    4   tcp    111  portmapper
    100000    3   tcp    111  portmapper
    100000    2   tcp    111  portmapper
    100000    4   udp    111  portmapper
    100000    3   udp    111  portmapper
    100000    2   udp    111  portmapper
    100024    1   udp  34528  status
    100024    1   tcp  52726  status
    100011    1   udp    875  rquotad
    100011    2   udp    875  rquotad
    100011    1   tcp    875  rquotad
    100011    2   tcp    875  rquotad
    100005    1   udp  52514  mountd
    100005    1   tcp  55703  mountd
    100005    2   udp  50364  mountd
    100005    2   tcp  48481  mountd
    100005    3   udp  58813  mountd
    100005    3   tcp  53255  mountd
    100003    2   tcp   2049  nfs
    100003    3   tcp   2049  nfs
    100003    4   tcp   2049  nfs
    100227    2   tcp   2049  nfs_acl
    100227    3   tcp   2049  nfs_acl
    100003    2   udp   2049  nfs
    100003    3   udp   2049  nfs
    100003    4   udp   2049  nfs
    100227    2   udp   2049  nfs_acl
    100227    3   udp   2049  nfs_acl
    100021    1   udp  46281  nlockmgr
    100021    3   udp  46281  nlockmgr
    100021    4   udp  46281  nlockmgr
    100021    1   tcp  46143  nlockmgr
    100021    3   tcp  46143  nlockmgr
    100021    4   tcp  46143  nlockmgr
    100026    1   udp    721  bootparam

Note that the portmapper (whichever implementation it is i.e. rpcbind or portmap) always listen on port 111.

 When both rpcbind and portmapper are running, you get an error message saying that : No RPC program registered.

I tried turning off rpcbind using chkconfig and left the older portmap running. The problem remained as it is.  But, when I turned off portmap and left the newer rpcbind running, I could see that the RPC servers are registering with the portmapper, as shown by the above listing.

With this setup, CCU11 i.e. spect boots correctly.  Now, let us look at the same packet where ASP_ST2 is sending a reply to spect for the latter's GET_PORT request.  As before, in the upper half of the packet image, the last line shows :
 Portmap GETPORT Reply Port : 724 Port: 724.  Now, if you run rpcinfo -p you can confirm that port 724 is where bootparamd is listening.

A sidetrack on bootparamd and dhcpd :

bootparamd is the precursor to the dhcp protocol and this serves the /usr/diskless/client  file tree to the CCU11, which then bootstraps to the code contained therein and a minimal UNIX environment takes shape.

With TS2.1 onwards, the installation of diskless from the Topspin DVD automatically installs a dhcpd.conf also under /etc/ directory.  Couple of points on that :

• As long as your console does not have the newer IPSO, you don't need this dhcp server to be running. The entire diskless boot is happening via bootparamd
• If you happen to upgrade to a newer console AVANCE-II or III that has an IPSO, you need this dhcpd daemon to be running.
• With RHEL 6.3, you should place the bruker suppled dhcpd.conf in the /etc/dhcp/  directory, since that is where the script expects the conf file. Your dhcpd daemon will not start, with the default /etc/dhcpd.conf  location.

Topspin 2.1 Acquisition install and RHEL 6.3

Our previous topics on Topspin 2.1 install issues on a 64 bit system pretty much pertained to a data processing workstation.   When you include the full acquisition suite, which pretty much means the diskless client, you will face few more obstacles before you are done.  This is more to do with the modern EL6.3 version rather than the fact that the system is a 64 bit one.

We will mention a few, hopefully, helpful pointers through this post on those.

 bootparamd:   As of Topspin 2.1,  diskless still relies on bootparamd daemon for uploading to the spect client from the ASP_ST2 server.  With Enterprise Linux 6.3, bootparamd is no longer available as a rpm.  We have to either copy it from the TS2.1 install dvd and install it or pull a hopefully fresher version from the web.  I normally look in  www.rpmfind.net.

• The install program gives this message box :

You can in principle install the version from TS2.1 disk. But it is of the RHEL4 flavour,  I looked in rpmfind.net and found a version that is built for CentOS 5.8, which is close enough.  The version I pulled as of this writing :   0.17-26.el5_7.1.x86_64.   Please remember that the daemon I am running is on the 64 bit host and that is why I installed the x86_64 version.

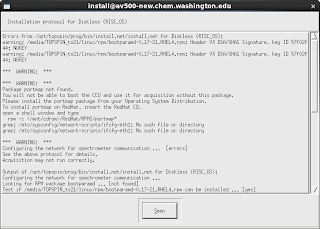

portmap  :You will see an error message about the missing rpm for portmap.  Here is the message box :

•  Once again I pulled the 64 bit Centos 5.8 version for this rpm and installed it.  By the way, when you try installing this via the gui and get an error message, simply copy the /tmp/portmap.rpm to some other location and use rpm -ivh portmap_xxx.rpm   to complete the install.

tftp : Unless you installed it specifically,  you will get a message about missing tftp (trivial file transfer protocol). This should be available in the standard RHEL 6.3 repo and you can install it readily.

dhcp : Since the spectrometer host is also the ASP_ST2 server, it needs to run a dhcpd server to provide the static IP to spect  in the 149.236.99.0 subnet.  If you have not done so, you can install dhcp package from the standard repo.

To check if the above steps worked for you,  start the Topspin install program again and this time, only install diskless  from the list of available modules. If it goes without any errors then you are ok.

eth1 : Like me, if you are building a new system to replace an existing spectrometer host, make sure that you have a second ethernet NIC in the system. If not, the TS install program will complain about not being able to start the eth1 network card.  This is ok, as long as you remember to put that second ethernet card in the system and configure it to be eth1, either by hand or by using the NetworkManager.

If eth1 is not already configured at the time of TS2.1 install, your diskless install will complain that the dhcpd daemon cannot start. This is because the /etc/dhcpd.conf file is configured to listen to client traffic packets on the interface eth1, which is not up and running.  You can consult /var/log/messages to see these error messages, by simply grep-ing for dhcpd.

Topspin and 32 bit libraries in a 64 bit system

On and off we have touched upon this topic, either in the context of making Topspin play well with Fedora or RHEL5. In particular, this problem is related to the inability of Topspin not able to source the 64 bit libraries.   This is a small snippet in that list. Hopefully, I will summarize the required libraries and rpm-s in a comprehensive post later.

System :  RHEL 6.3 on a Intel 64 bit machine (Dell Optiplex 390)

After the install, I needed to install the following 32 bit rpm-s that essentially provide X11 related shared object libraries.  Please remember that, in a 64 bit system like the above, the 64 bit versions of these shared libraries are already installed.  Since Topspin takes a minimalist approach, it only looks for files under /usr/lib instead of /usr/lib64, to give an example.

The following 32 bit rpm-s are needed even for TS install to work properly, via the graphical interface.

glibc.i686             :
glibc-devel.i686    :
libX11.i686 (this gets pulled in as a dependency if you install libX11-devel)
libX11-devel.i686  :

After install, once your flexlm license manager is started

correctly, the TS startup halts at the point where the

welcome screen is supposed to come up.

One or more of the shared library files will be reported

to be missing in the console window, at this stage. The rpm-s shown above are the ones that provide those missing shared object libraries.

The following are needed for the TS gui to start correctly.


libXext-devel.i686

libXtst.i686

 After the above rpm-s are installed,  the GUI comes up without any issues.

High T served..

How high can I go with my VT setup ?  This is a nagging but relevant question that needs a definitive answer for many users.  I ran  the following test to figure this out.

Here is some useful info first, as to what we already know.

• The recommended temperature extremes that the room temperature bore can tolerate is between 0 C to 50 C.
• The shim stack itself can apparently handle +80C (this needs clear confirmation from Bruker and I am working on it).
• There is no active thermal shielding setup between the probe head sample space and what surrounds it.  In non-gradient model probes, there used to be a vacuum dewar that provided effective insulation.
• The gradient coil takes up the space occupied by the vacuum jacket and this means that the heat will transfer from the coil space to the probe sleeve and then onto the RT shim stack and eventually to the RT bore itself (heat will flow in the opposite direction for low VT experiments)
• Bruker provides an active cooling mechanism by providing either a barbed connector or a compression coupling at the top of the BST (Bruker Sample Transport) assembly.  We are asked to provide an air flow of 200 to 300 L/hr through this to cool the shim stack. We don't need much pressure since this is supposed to be a free flow, where the cooling air exits out of the bottom of the shim stack.
• When we jacked up the flow beyond 600 L/hr., the sample is getting lifted from its seated position and so that should give us an upper cutoff.

We employed the temperature and humidity logger from a company called 'Onset'.  They have a windows based $$ware called HOBOware that controls the logger, transfers data to the PC and plots it.

Topspin 1.3 Compilation Issues - III

I think this problem has been on and off lurking with only the TS 1.3 systems.  The summary  relevant to the topic is that, Bruker has released a 'revamped' makeau script and has rewritten several of the commonly employed au scripts such as :  multizg, multicmd, multi_zgvd, multi_zgvt, simplex, to name a few.

The new 'makeau' should be in the following directory :

$XWINNMRHOME/exp/stan/nmr/au/

The new au scripts themselves should be here :

$XWINNMRHOME/exp/stan/nmr/au/src

In my peculiar case, I had an additional problem that has crept up  for an inexplicable reason.  This is that, the important include file called exptUtil has been copied over from a Topspin 3.0 distribution, onto the DRX499 system which runs the TOPSPIN 1.3. The two versions are different from each other.

exptUtil lives in the following location :

$XWINNMRHOME/prog/include/inc

In conclusion, with the correct exptUtil, makeau compilation script and the new au source files,  compilation seems to run smoothly.  I did a recompilation of all 'au' programs via 'expinstall' in DRX499 and that proceeded without a hitch.  The same on DPX200 was mostly successful i.e. some scripts did produce an error, which I suspect are some of the user made 'au' scripts.

We will expand on those later, if it becomes important to investigate.

TOPSPIN 3.0 AND SHARED LIBRARIES...

It will be useful to keep the following post open in another window, as I discuss this : TUESDAY, APRIL 20, 2010 Topspin Display issues and Fedora - in General. More important is the comment I added to this post.

After my recent upgrade to FC16, I could not do 'ased'  or display my pulse program. Similar to my comment to the post quoted above, I got a cryptic killed process error message rather than a complaint about the missing libraries.  Nevertheless,  indeed the problem was with the missing shared libraries.

I used the following BASH script to smoke out all the modules that might be suffering from whatever deficiency there is vis-a-vis unavailable shared libraries.

#!/bin/bash

for i in `ls -1 /opt/topspin3/prog/mod`

 do

     if [[ `/opt/topspin3/topspin -e ldd /opt/topspin3/prog/mod/$i` == *not* ]]; then

echo $i;

     fi

done

This lists out all the modules that are lacking the needed libraries.
I then ran the ldd by hand on those modules to find out the names of needed libraries.  A followup with a 'yum search --> yum install'  completed the process.  In all the cases I looked for the i686 version since  even with Topspin3.0, it looks for the shared libraries in /usr/lib and not in /usr/lib64.

As you could see, some of the lacking libraries are already installed as the 64 bit version in /usr/lib64, but this doesn't help the casue of TS3.

TOPSPIN 1.3PL10 ICON-NMR hiccup

When we start ICONNMR, from within Topspin, the interface comes up but when we attempt to start an automation run, it gives an error that says, in a nutshell, that the common library file :  libssl.so.2 is not accessible.    We have encountered similar 'share library deficiency' problem in the past, in the context of making TS2.1 run on a Fedora platform.

The shared library in question is evidently related to TLS/SSL, since this error message is triggered in the first place, by trying to access /opt/topspin/prog/tcl/libtix/tls1.5/libtls.so.    From my understanding thus far, the TLS/SSL will play a role most probably when serving the Icon information via the in-built web server, where there is an option to turn on 'https' access to the same instead of 'http'. This is important from the security viewpoint since, in principle we can filter the access to this Icon web interface based on password authentication and this will be the PAM recognizable password, indeed.  Even if the content is not so serious to be protected against,  the password supply in the authentication step poses a big security hole as the former typically gets transmitted as plain text.   It is imperative that you turn on the 'https' mode or simply allow read-only access to the content without asking for any password transmission.

Coming back to the shared library, I solved the problem as below. This is where the older hard disk with its contents in tact came in very handy.   I now created a link such as :  ln -sf /lib/libssl..so /lib/libssl.so.2

When we restart ICON now, the above error message goes away but it still complains about another file in the same location as before : libcrypto.so.2.

The remedy turned out to be a step very similar to what we did above for the libssl.so.2 case.   Do a : ln -s /lib/libcrypto..so libcrypto.so.2

With these two done, ICON launches and functions without errors.  As a history, this problem of libssl being not there, is possibly linked to the ssl library update that Richard did when he reinstalled the distro. after a disk crash, though I am not totally sure about it.
